Webhooks

Receive real-time notifications when async screenshot jobs and batches complete, or when a Rendex Watch detects a change, recovers, or errors. All webhooks are HMAC-signed for security and retried automatically on failure.

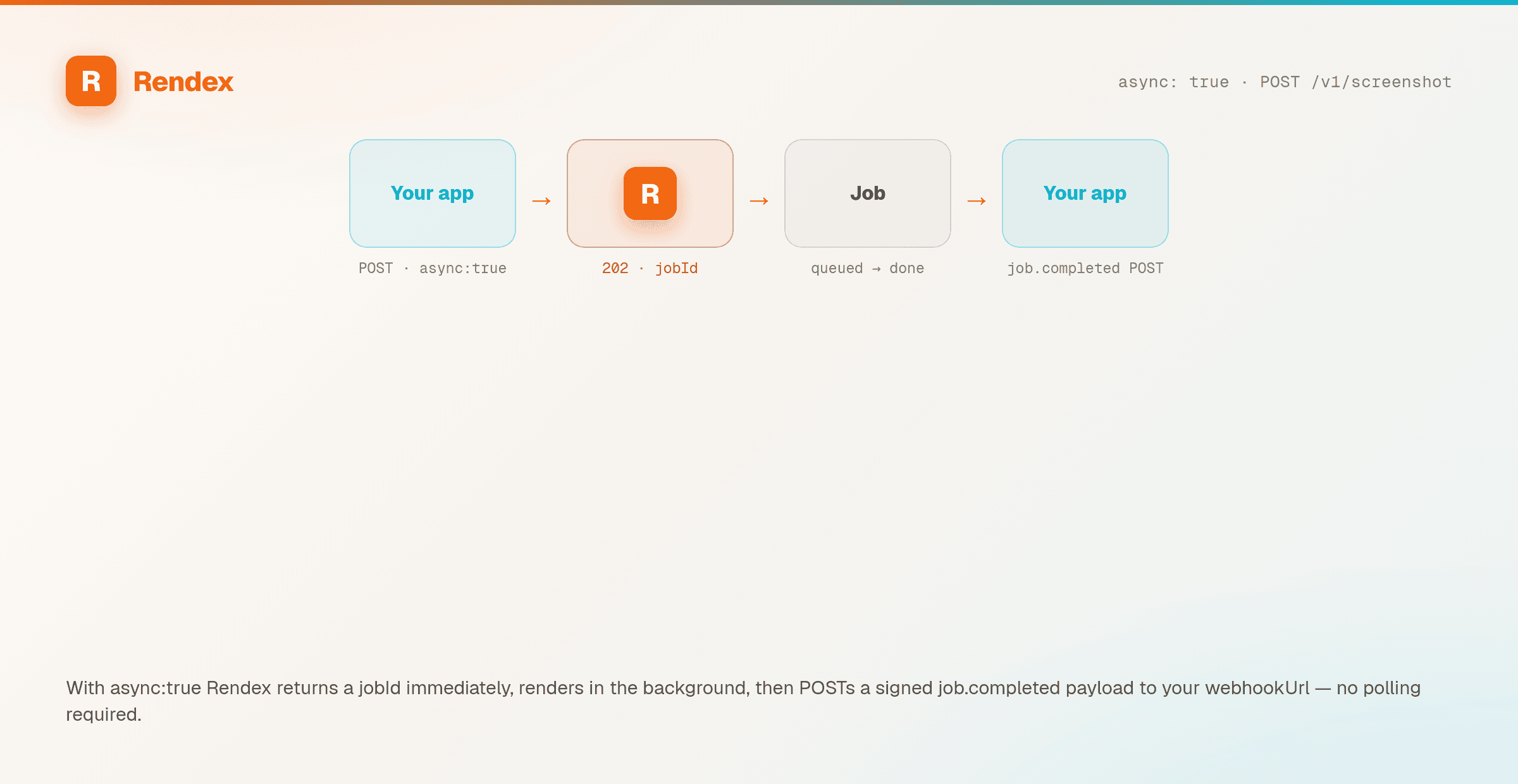

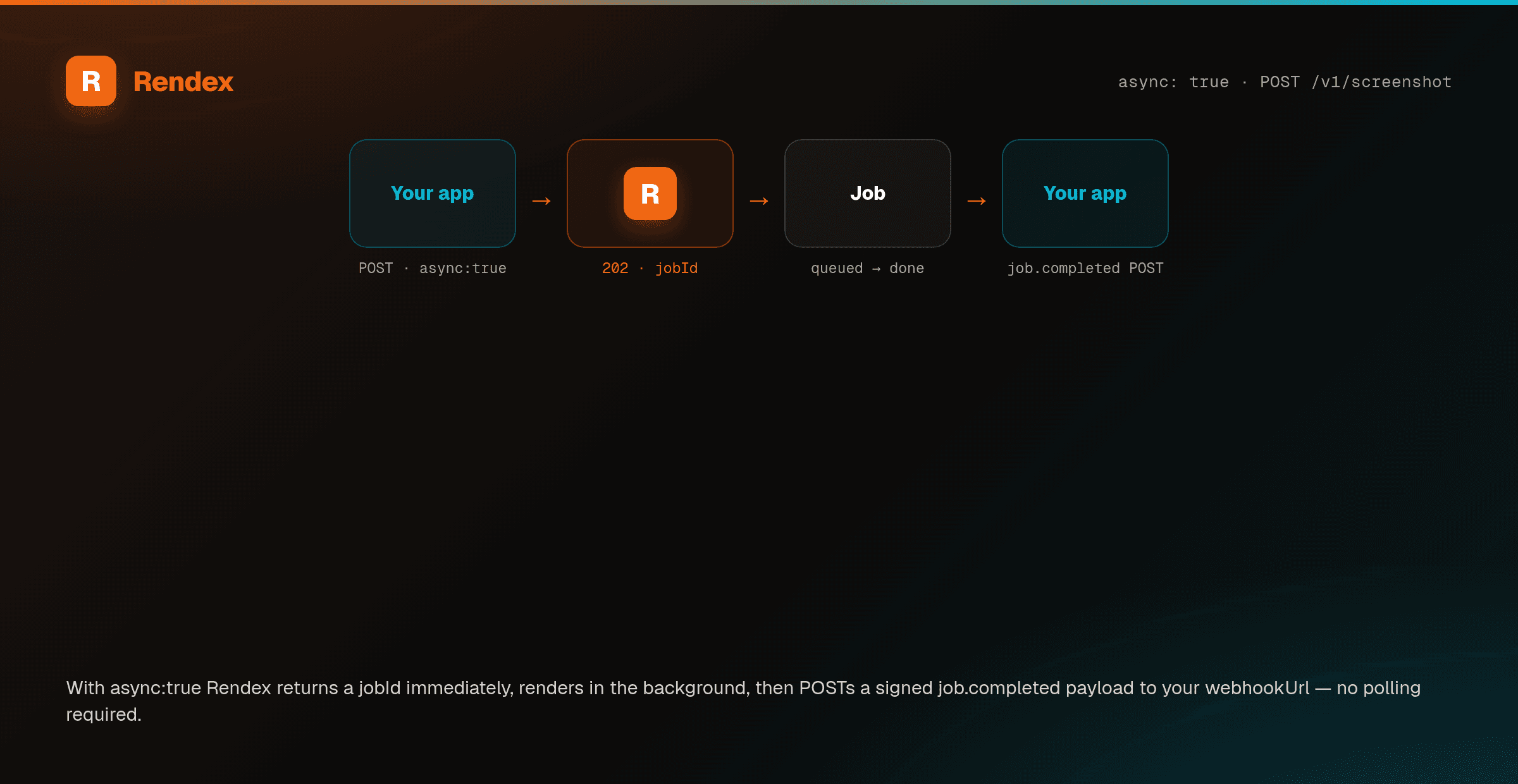

How Webhooks Work

1. Include a webhookUrl when creating an async job or batch
2. When the job completes (or fails), Rendex sends a POST request to your URL
3. The payload is signed with HMAC-SHA256 so you can verify it came from Rendex
4. If delivery fails, Rendex retries up to 3 times with exponential backoff

Setting a Webhook URL

Pass webhookUrl with any async request:

{
  "url": "https://example.com",
  "async": true,
  "webhookUrl": "https://your-server.com/webhook/rendex"
}

For batches, the webhook fires once when the entire batch completes:

{
  "urls": ["https://example.com", "https://github.com"],
  "webhookUrl": "https://your-server.com/webhook/rendex"
}

Event Types

Watch events fire on the same HMAC-signed channel as job and batch webhooks (same headers and signature scheme). The watch.changed payload carries a one-line summary of what changed, the added/removed textDiff lines, a 0..1 diffScore, and before/after/overlay/crop image URLs — the same field names the REST run history returns, so a text-only workflow needs no image or dashboard. See the Watch API docs for the full payload.

Payload Examples

job.completed

{
  "event": "job.completed",
  "jobId": "550e8400-e29b-41d4-a716-446655440000",
  "status": "completed",
  "resultUrl": "https://api.rendex.dev/v1/images/abc123?sig=...",
  "metadata": {
    "url": "https://example.com",
    "width": 1280,
    "height": 800,
    "format": "png",
    "bytesSize": 524288,
    "loadTimeMs": 2150
  },
  "completedAt": "2026-04-07T12:00:30Z"
}

job.failed

{
  "event": "job.failed",
  "jobId": "550e8400-e29b-41d4-a716-446655440000",
  "status": "failed",
  "error": "The page took too long to load. Try increasing the timeout or using bestAttempt=true.",
  "completedAt": "2026-04-07T12:00:45Z"
}

batch.completed

{
  "event": "batch.completed",
  "batchId": "660e8400-e29b-41d4-a716-446655440000",
  "status": "completed",
  "totalJobs": 3,
  "completedJobs": 2,
  "failedJobs": 1,
  "completedAt": "2026-04-07T12:01:00Z",
  "jobs": [
    { "jobId": "aaa-111", "status": "completed", "resultUrl": "https://..." },
    { "jobId": "bbb-222", "status": "completed", "resultUrl": "https://..." },
    { "jobId": "ccc-333", "status": "failed", "error": "Screenshot capture failed." }
  ]
}

Webhook Headers

Verifying Signatures

The signature is computed as HMAC-SHA256(timestamp + "." + body, secret). This follows the same pattern as Stripe webhooks.

import crypto from "node:crypto";

function verifyWebhook(body, signature, timestamp, secret) {
  const message = `${timestamp}.${body}`;
  const expected = crypto
    .createHmac("sha256", secret)
    .update(message)
    .digest("hex");

  // Timing-safe comparison to prevent timing attacks
  if (signature.length !== expected.length) return false;
  return crypto.timingSafeEqual(
    Buffer.from(signature),
    Buffer.from(expected)
  );
}

// Express / Hono handler
app.post("/webhook/rendex", (req, res) => {
  const body = JSON.stringify(req.body);
  const sig = req.headers["x-rendex-signature"];
  const ts = req.headers["x-rendex-timestamp"];

  if (!verifyWebhook(body, sig, ts, process.env.WEBHOOK_SECRET)) {
    return res.status(401).json({ error: "Invalid signature" });
  }

  const { event, jobId, status, resultUrl } = req.body;
  console.log(`[${event}] Job ${jobId}: ${status}`);

  res.status(200).json({ received: true });
});

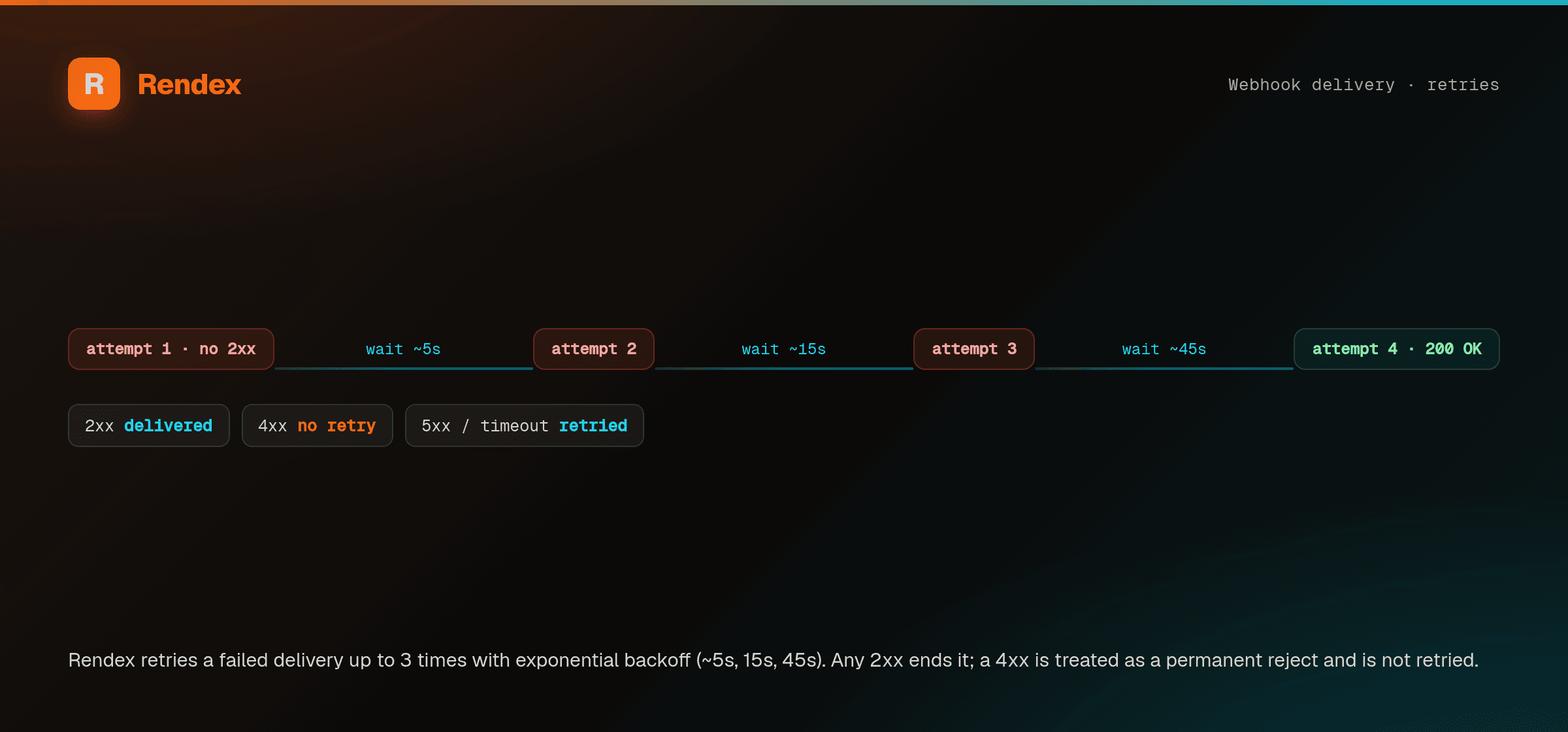

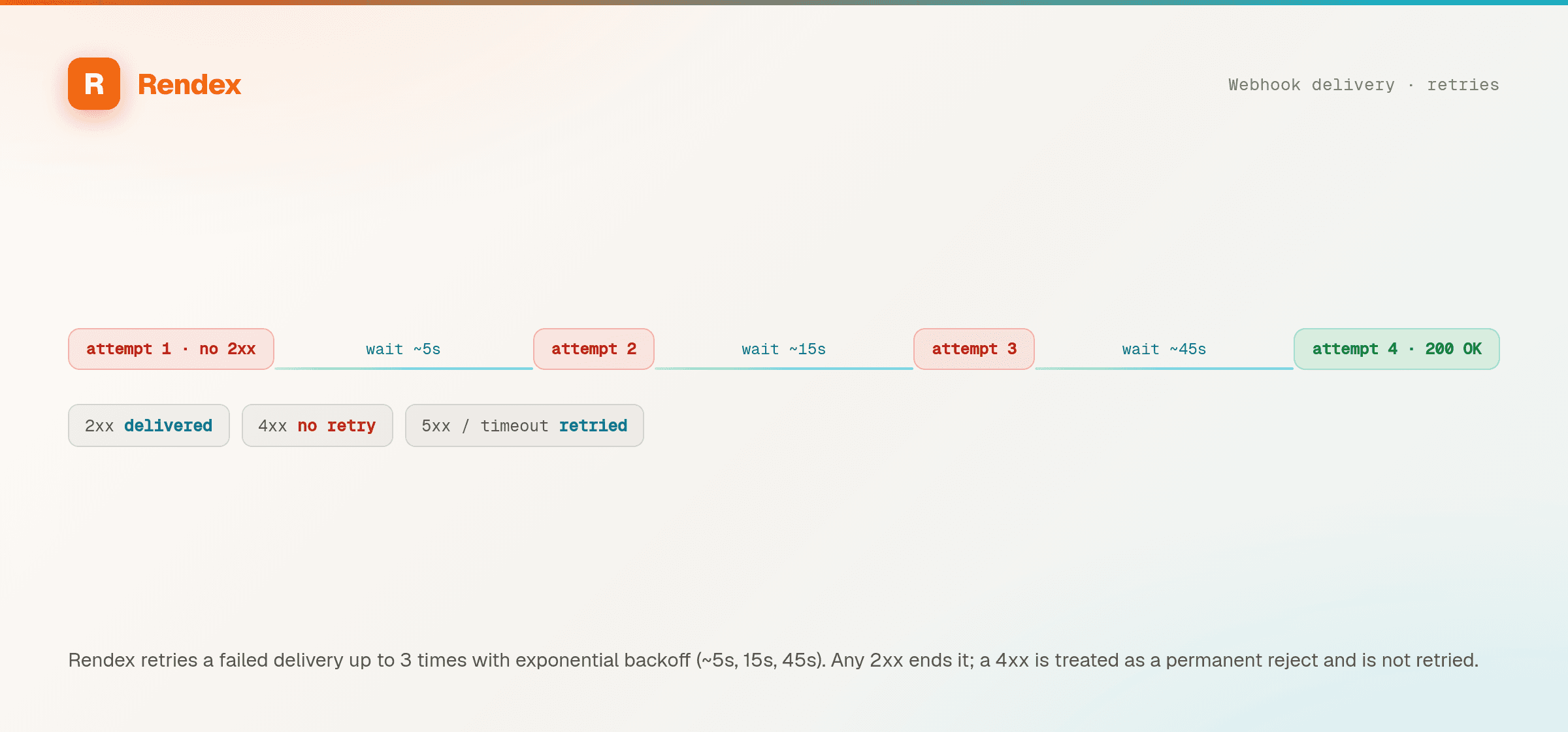

Retry Behavior

• Max retries: 3 (4 total attempts)
• Backoff: Exponential with jitter — approximately 5s, 15s, 45s
• 2xx response: Delivery confirmed, no retry
• 4xx response: Client error — no retry (fix your endpoint)
• 5xx response: Server error — retried
• Timeout: 10 seconds per attempt — retried

Best Practices

• Always verify signatures — reject unsigned or invalid requests
• Use the delivery ID for idempotency — the same x-rendex-delivery-id is sent across retries
• Return 200 quickly — process the payload asynchronously to avoid timeouts
• Use HTTPS — webhook URLs must be publicly accessible HTTPS endpoints
