Custom Storage

Route async capture results directly to your own S3-compatible bucket. Available on Pro and Enterprise plans.

Overview

By default, Rendex stores all async captures in our Cloudflare R2 storage and returns time-limited signed URLs. With Custom Storage, your images upload directly to your own bucket, giving you full control over data residency, retention, and access.

When custom storage is active, webhook payloads and job status responses include S3 presigned URLs pointing to your bucket instead of Rendex URLs.

Supported Providers

Setup

1. Go to Dashboard → Settings → Storage
2. Enter your S3-compatible credentials (Access Key ID and Secret Access Key)
3. Specify the bucket name and region
4. For non-AWS providers, enter the custom endpoint URL
5. Click Test Connection to verify access
6. Toggle Active and click Save

AWS IAM Policy

Create a dedicated IAM user with the minimum permissions Rendex needs to upload captures and generate presigned download URLs:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:GetObject",
        "s3:HeadBucket"
      ],
      "Resource": [
        "arn:aws:s3:::YOUR-BUCKET-NAME",
        "arn:aws:s3:::YOUR-BUCKET-NAME/*"
      ]
    }
  ]
}

File Structure

Captures are stored with a date-based key structure under your configured prefix:

{key_prefix}/{YYYY-MM}/{jobId}.{format}

Examples:
  rendex/2026-04/a1b2c3d4-e5f6-7890-abcd-ef1234567890.png
  rendex/2026-04/a1b2c3d4-e5f6-7890-abcd-ef1234567890.webp
  screenshots/2026-04/a1b2c3d4-e5f6-7890-abcd-ef1234567890.pdf

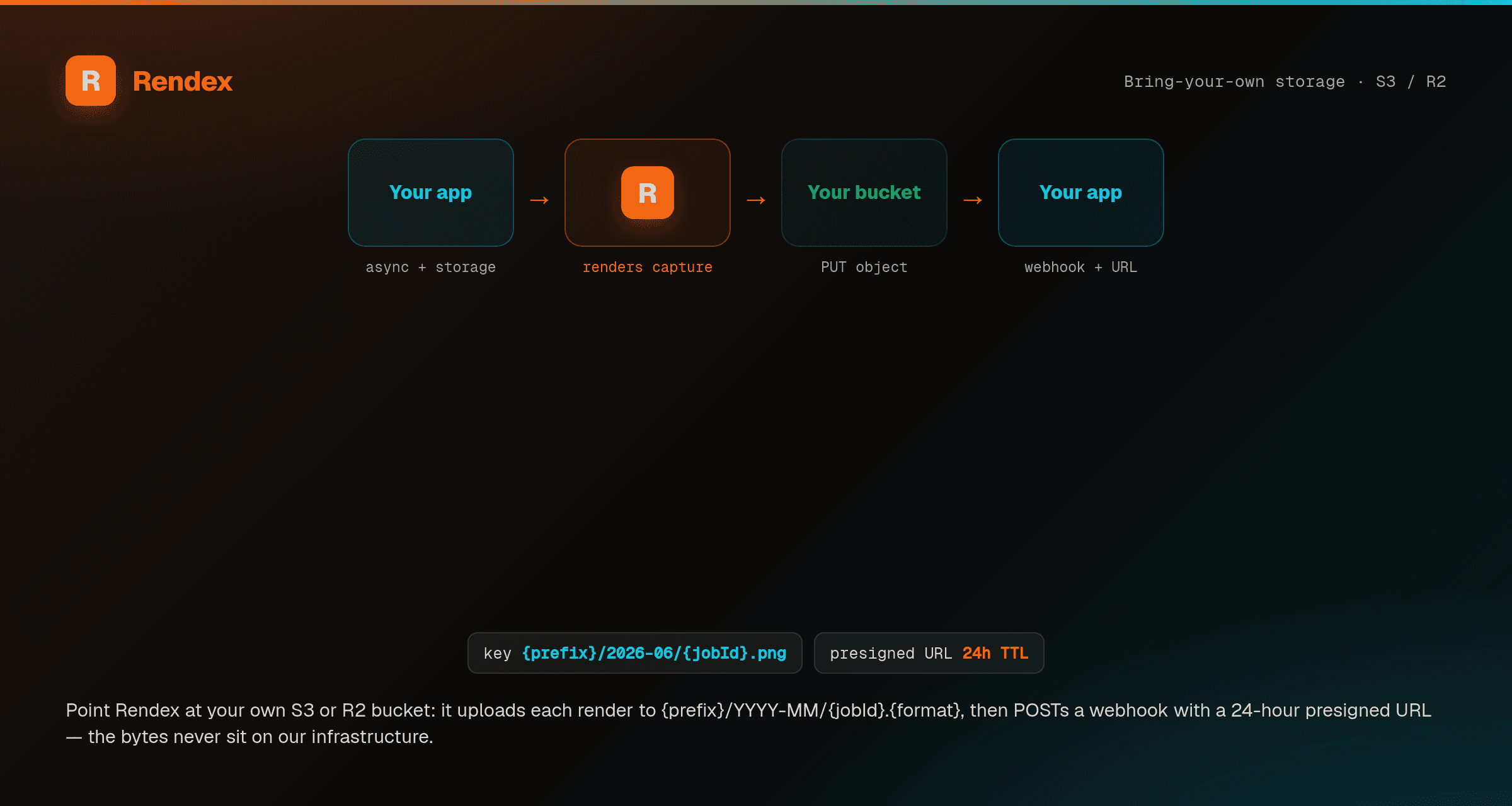

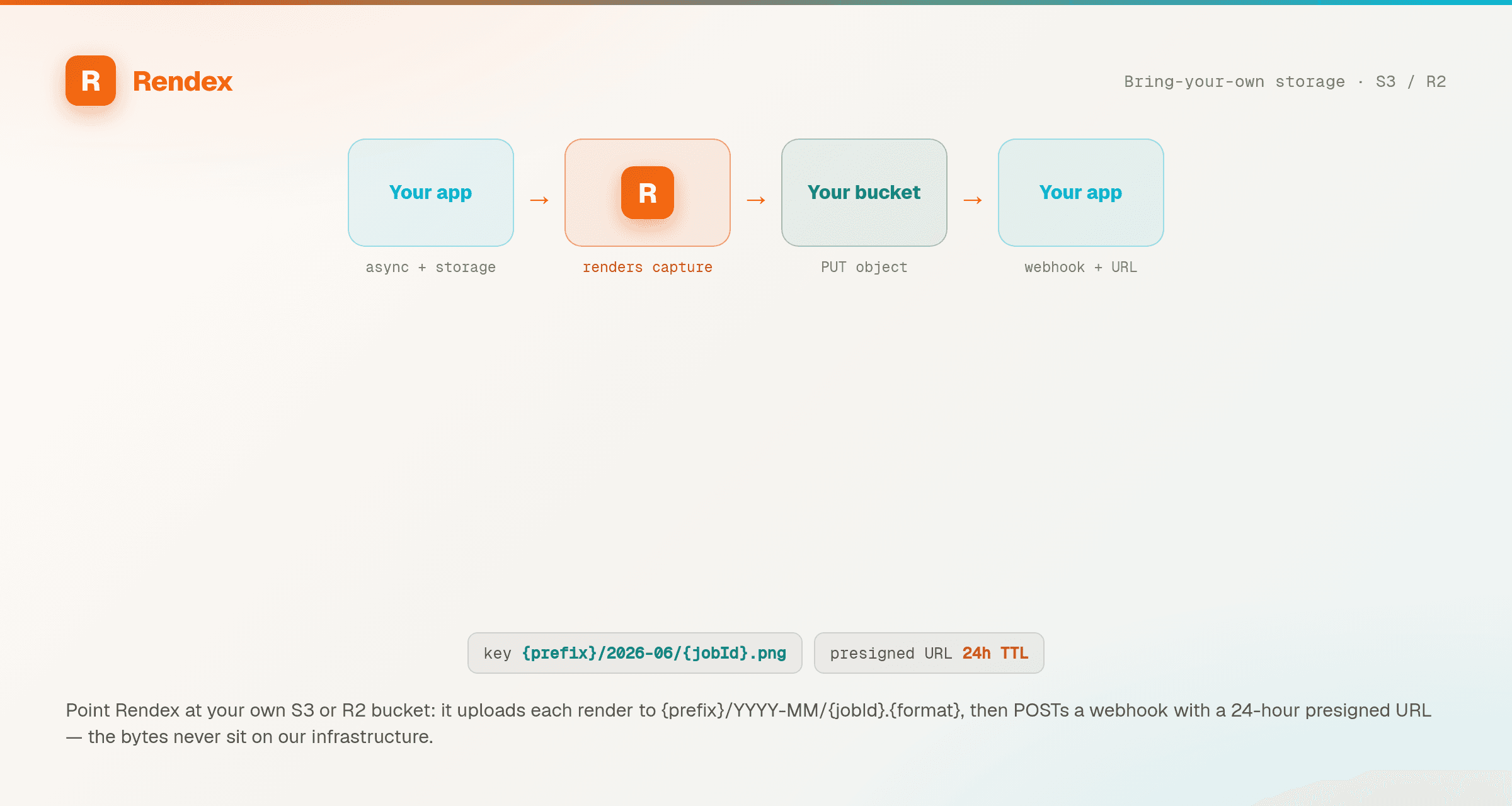

How It Works

1. You submit an async screenshot request (with async: true)
2. Rendex captures the screenshot as normal
3. Instead of uploading to Rendex R2, the image uploads to your bucket via S3 PutObject
4. An S3 presigned URL (default 24h TTL) is generated for the object
5. The presigned URL is stored in the job record and delivered via webhook

Webhook Payload

When custom storage is active, the resultUrl in webhook payloads is an S3 presigned URL to your bucket:

{
  "event": "job.completed",
  "jobId": "a1b2c3d4-...",
  "status": "completed",
  "resultUrl": "https://your-bucket.s3.us-east-1.amazonaws.com/rendex/2026-04/a1b2c3d4-....png?X-Amz-...",
  "metadata": {
    "url": "https://example.com",
    "width": 1280,
    "height": 800,
    "format": "png"
  },
  "completedAt": "2026-04-05T12:00:00.000Z"
}

Security

Limitations

• Custom storage only applies to async captures (requests with async: true). Sync responses return the image directly in the HTTP response.
• One storage configuration per account.
• Presigned URL TTL follows your configured cacheTtl (default 24 hours).
